| Part Number | Rating (A) | Contact Form | Regulatory Approvals | Dielectric Strength | Insulation Class | Mounting Method | Additional Information | PDF |
AZ5  | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ951-AZ952. |
| AZ5X | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ951-AZ952. |
| AZ5Y | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ951-AZ952. |
AZ8  | 3-6A | SPST/SPDT | UL/CUR/VDE | 3000 Vrms dielectric | Class B+F | PCB mount | - |  |
AZ8A  | 10A | SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ164  | 15A | DPDT-4PDT | UL/CUR | 1500 Vrms dielectric | - | PCB mount | - | |
AZ165  | 15A | DPDT-4PDT | UL/CUR | 1500 Vrms dielectric | - | solder/socket mount | - | |
AZ166  | 15A | DPDT-4PDT | UL/CUR | 1500 Vrms dielectric | - | solder/top flange mount | - | |
| AZ167 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ166. |
| AZ168 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ166. |
| AZ420 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is None. |
| AZ421 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is None. |
| AZ428 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is None. |
| AZ429 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is None. |
| AZ431 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is None. |
| AZ439 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is None. |
AZ576  | 20A | SPST/SPDT | UL/CUR | 5000 Vrms dielectric | Class F | PCB mount | High inrush | |
AZ576P  | 20A | 1 Form A, B, C | UL/CUR | 5000 Vrms dielectric | Class F | PCB mount | Latching | |
| AZ672 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ673. |
AZ673  | 10A | SPST | UL/CUR | 4000 Vrms dielectric | Class B | PCB mount | - | |
| AZ683 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ763. |
| AZ692/AZ693 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ576, AZ761, AZ6975. |
| AZ695 | This series is not for new design, contact sales@azettler.com for replacement. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ6951. |
AZ696  | 10A | SPST/SPDT | UL/CUR/VDE | 4000 Vrms dielectric | - | PCB mount | - | |
AZ697  | 10A | SPST/SPDT | UL/CUR/TUV | 5000 Vrms dielectric | Class B+F | PCB solder/socket mount | - | |
| AZ723 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ742. |
| AZ725 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ576. |
| AZ726 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ764. |
| AZ732 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ742, AZ743, AZ7335. |
AZ733  | 12A | DPST/DPDT | UL/CUR/TUV | 5000 Vrms dielectric | Class B+F | PCB solder/socket mount | - | |
AZ733W  | 12A | DPST | UL/CUR/TUV | 5000 Vrms dielectric | Class B+F | PCB solder/socket mount | 1.5mm gap | |
| AZ733WC | This series is not for new design, contact sales@azettler.com for replacement. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ7335W. |
AZ734  | 5A | DPST | UL/CUR | 4000 Vrms dielectric | Class B | PCB mount | - | |
AZ742  | 10A | DPST/DPDT | UL/CSA/VDE | 5000 Vrms dielectric | Class F | PCB solder/socket mount | - | |
AZ743  | 10A | DPST/DPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class B+F | PCB mount/socket mount | 10 mm isolation | |
AZ755  | 20A | SPDT | UL/CUR/TV | 5000 Vrms dielectric | Class B+F | PCB solder/socket mount | - | |
AZ756  | 20A | SPST/SPDT | UL/CUR | 5000 Vrms dielectric | Class B+F | PCB mount w/quick connects | - | |
AZ757  | 20A | SPST | UL/CUR | 5000 Vrms dielectric | Class B | PCB mount w/quick connects | - | |
| AZ760 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ7695. |
AZ761  | 12A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class B+F | PCB mount | 10 mm isolation | |
AZ762  | 16A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class B+F | PCB mount | High inrush | |
AZ762F  | 20A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class F | PCB/quick connects | 10 mm isolation | |
AZ762H  | 16A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class F | PCB mount | 10 mm isolation | |
AZ762P  | 20A | SPST/SPDT | UL/CUR | 4400 Vrms dielectric | - | PCB mount | Latching | |
AZ762T  | 16A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class F | PCB mount | High inrush | |
AZ763  | 12A | SPST/SPDT | UL/CSA/VDE | 5000 Vrms dielectric | - | PCB solder/socket mount | - | |
AZ764  | 16A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | - | PCB solder/socket mount | 10 mm isolation | |
| AZ765 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ767. |
| AZ766 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9481. |
AZ767  | 3A | SPDT | UL/CUR | 2500 Vrms dielectric | Class B | PCB solder | - | |
AZ769  | 25A | SPST | UL/CUR | 4500 Vrms dielectric | - | PCB mount | - | |
AZ770  | 5A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class B | PCB Mount | - | |
| AZ820 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ8222. |
| AZ821/AZ831 | This series is not for new design, contact sales@azettler.com for replacement. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ8222. |
AZ822  | 2A | DPDT | UL/FCC Part 68 | 1000 Vrms dielectric | - | DIP PCB solder/socket mount | - | |
AZ826  | 2A | DPDT | - | 1500 Vrms Dielectric | - | PCB mount/socket mount | - | |
| AZ830 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ822, AZ8222, AZ826. |
| AZ830-4P | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ822, AZ8222, AZ826. |
| AZ830P | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ832P. |
AZ832  | 2A | DPDT | UL/FCC | 1500 Vrms dielectric | - | DIP PCB solder/socket mount | - | |
AZ832P  | 2A | DPDT | UL/FCC Part68 | 1500 Vrms dielectric | - | DIP PCB solder/socket mount | latching | |
| AZ832P1 | 2A | DPDT | UL/FCC Part68 | 1500 Vrms dielectric | - | DIP PCB solder/socket mount | latching | |
| AZ832P2 | 2A | DPDT | UL/FCC Part68 | 1500 Vrms dielectric | - | DIP PCB solder/socket mount | latching | |
| AZ846 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ8462. |
| AZ847 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ850. |
| AZ848 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ851. |
AZ850  | 1A | DPDT | UL/CSA/FCC Part 68 | 1000 Vrms dielectric | - | DIP PCB solder/socket mount | Latching | |
| AZ850P1 | 1A | DPDT | UL/CSA/FCC Part 68 | 1000 Vrms dielectric | - | DIP PCB solder/socket mount | Latching | |
| AZ850P2 | 1A | DPDT | UL/CSA/FCC Part 68 | 1000 Vrms dielectric | - | DIP PCB solder/socket mount | Latching | |
AZ851  | 1A | DPDT | UL/CSA/FCC Part 68 | 1250 Vrms dielectric | - | SMT mount | - | |
| AZ852 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ8521. |
AZ852P  | 1A | DPDT | UL/CSA | 1500 Vrms dielectric | - | PCB mount | Bifurcated crossbar contacts, Latching | |
| AZ852PS | 1A | DPDT | UL/CSA | 1500 Vrms dielectric | - | PCB mount | Bifurcated crossbar contacts, Latching | |
| AZ852PS1 | 1A | DPDT | UL/CSA | 1500 Vrms dielectric | - | PCB mount | Bifurcated crossbar contacts, Latching | |
| AZ852S | 1A | DPDT | UL/CSA | 1500 Vrms dielectric | - | PCB mount | Bifurcated crossbar contacts | |
| AZ852S1 | 1A | DPDT | UL/CSA | 1500 Vrms dielectric | - | PCB mount | Bifurcated crossbar contacts | |
| AZ853 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ8521. |
| AZ880 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ888. |
| AZ881 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ888. |
AZ888  | 8A | SPST/DPST/SPST-NO+SPST-NC | UL/CUR | 3000 Vrms dielectric | Class F | PCB mount | Latching | |
AZ900  | 30A | 1 Form A,B,C,X,Y, 2 form A,B,C | UL/CUL | 2200 Vrms dielectric | Class F | panel mount | - | |
| AZ920 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ921. |
AZ921  | 5A | SPST | UL/CUR | 3000 Vrms dielectruc | Class B+F | PCB mount | - | |
AZ932  | 15A | SPST-NO/SPST-NC/SPDT | UL/CUR | 1500 Vrms dielectric | - | PCB mount | low height | |
| AZ934 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9891J. |
| AZ935 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ934. |
| AZ936 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9481. |
AZ937  | 3A | SPST | UL/CUR | 4000 Vrms dielectric | - | PCB mount | - | |
| AZ939 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ9371, AZ9375. |
AZ940  | 10A | SPST/SPDT | UL/CUR | 4000 Vrms dielectric | Class B+F | PCB mount | - | |
| AZ941 | This series is not for new design, contact sales@azettler.com for replacement. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ943. |
AZ942  | 16A | SPST/SPDT | UL/CUR | 1750 Vrms dielectric | Class B | PCB mount | - | |
| AZ942A | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9421A. |
AZ942H  | 16A | SPST/SPDT | UL/CUR/VDE | 2000 Vrms dielectric | Class B+F | PCB mount | - | |
AZ943  | 15A | SPST/SPDT | UL/CUR/TÜV | 1500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ943S  | 15A | SPST/SPDT | UL/CUR/TÜV | 1500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ943W  | 10A | SPST/SPDT | UL/CUR/TÜV Pending | 1500 Vrms dielectric | Class B+F | PCB mount | - | |
| AZ944 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9481. |
| AZ946 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is -. |
AZ947  | 20A | SPST/SPDT | - | 500 Vrms dielectric | Class B | PCB mount | automotive | |
AZ948  | 16A | SPST | UL | 1500 Vrms dielectric | - | PCB mount | - | |
AZ951  | 1-5A | SPDT | UL/CUR | 1250 Vrms dielectric | - | PCB mount | - | |
| AZ952 | 1-5A | SPDT | UL/CUR | 1250 Vrms dielectric | - | PCB mount | - | |
| AZ954 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ951. |
| AZ954X | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ951. |
| AZ954Y | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ952. |
| AZ955 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ9571, AZ957. |
| AZ956 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is No Replacement. |
| AZ956P | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is No Replacement. |
AZ957  | 1A | SPDT | UL/CUR/FCC Part 68 | 1250 Vrms dielectric | - | DIL pitch terminals/surface mount available | - | |
| AZ960 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9405. |
| AZ961 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9405. |
AZ970/AZ971  | 45A | SPST/SPDT | - | 500 VDC dielectric | - | PCB mount | automotive | |
| AZ970E/AZ971E | 45A | SPST/SPDT | - | 500 VDC dielectric | - | PCB mount | automotive | |
| AZ973 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ9731, AZ9733. |
| AZ974 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ9741, AZ9734. |
AZ975/AZ976  | 20A | 1 Form A,B,C,V,W,X | - | 500 Vrms dielectric | - | PCB mount | automotive | |
| AZ9751/AZ9761 | 20A | 1 Form A,C,U,W | - | 500 Vrms dielectric | - | PCB mount | automotive | |
AZ977  | 20A | SPDT | - | 500 VDC dielectric | Class F | quick connect/socket | automotive | |
AZ978  | 20A | SPST/SPDT | - | 1000 VDC dielectric | Class B | PCB solder/socket mount | automotive | |
AZ979  | 80A | SPST/SPDT | - | 500 Vrms dielectric | Class F | quick connect/socket w/bracket | automotive | |
AZ980  | 80A | SPST/SPDT | - | 500 Vrms dielectric | Class F | quick connect/socket mount | automotive | |
AZ983  | 80A | SPST/SPDT | - | 500 Vrms dielectric | - | PCB mount | automotive | |
AZ984  | 20A | SPST/SPDT | - | 500 Vrms dielectric | - | socket mount | automotive | |
| AZ986 | This series is not for new design, contact sales@azettler.com for replacement. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9861. |
AZ9861  | 40A | SPST/SPDT | - | 500 Vrms dielectric | - | quick connects | automotive | |
AZ987  | 30A | SPST/SPDT | - | 500 Vrms dielectric | - | PCB mount | automotive | |
AZ988  | 30A | SPST/SPDT | - | 500 VDC dielectric | - | PCB mount w/quick connects | automotive | |
AZ989  | 25A | SPDT/DPDT | - | 500 Vrms dielectric | - | PCB mount | automotive | |
| AZ991 | This series is not for new design, contact sales@azettler.com for replacement. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is -. |
AZ992  | 20A | SPST | - | 500 Vrms dielectric | - | quick connect | automotive | |
AZ160  | 60A | SPST | UL/CUR/TUV | 4500 Vrms dielectric | Class F | PCB mount | 0.8mm contact gap | |
AZ1641  | 5-20A | 1-4PDT | UL/CUR | 1500 Vrms dielectric | - | PCB mount | - | |
AZ1651  | 5-20A | 1-4PDT | UL/CUR | 1500 Vrms dielectric | - | solder/socket mount | - | |
AZ1661  | 5-20A | 1-4PDT | UL/CUR | 1500 Vrms dielectric | - | solder/panel mount | - | |
AZ2100  | 40A | SPDT/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount w/quick connects | - | |
AZ21001  | 50A | SPST/SPDT | UL/CUR/TÜV pending | 2500 Vrms dielectric | Class B+F | PCB mount w/quick connects | - | |
AZ2110  | 40A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ2120  | 40A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount w/quick connects | - | |
AZ2150  | 40A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ21501  | 50A | SPST/SPDT | UL/CUR/TÜV pending | 2500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ21501P  | 50A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount | Latching | |
AZ2150W  | 30A | SPST | UL/CUR/VDE | 4000 Vrms dielectric | Class F | PCB mount | 1.75mm gap | |
AZ2151  | 40A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ2160  | 40A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount w/quick connects | - | |
| AZ2161 | 40A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount w/quick connects | - | |
AZ2270  | 30A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class F | PCB mount w/quick connects | - | |
AZ2280  | 40A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class F | panel mount w/quick connects | - | |
AZ22801  | 40A | 1 Form A,B,C, | UL/CUR | 4000 Vrms dielectric (option) | Class B+F | panel mount w/quick connects | - | |
| AZ2300 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is -. |
AZ2310  | 30A | SPST | UL/CUR | 4000 Vrms dielectric | - | panel mount w/quick connects | - | |
| AZ2428 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is None. |
| AZ2429 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is None. |
AZ2500  | 60A | SPST | UL/CUR | 4000 Vrms dielectric | - | heavy tabs | - | |
AZ2501  | 50A | SPST/SPDT | UL/CUR | 4000 Vrms dielectric | - | heavy tabs | - | |
AZ2501L  | 60A | SPST/SPDT | UL/CUR | 4000 Vrms dielectric | - | PCB mount | - | |
| AZ2505 | This series is not for new design, contact sales@azettler.com for replacement. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is -. |
| AZ2692/AZ2693 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ761, AZ576, AZ6975. |
AZ2700  | 30A | SPST/DPST | UL/CUR/TÜV | 4000 Vrms dielectric | Class B+F | panel mount w/quick connects | 2.4mm or 3.0mm contact gap | |
AZ2701  | 30A | SPST/DPST | UL/CUR/TÜV | 4000 Vrms dielectric | Class B+F | E mount w/quick connects | 2.4mm or 3.0mm contact gap | |
AZ2702  | 30A | SPST/DPST | UL/CUR/TÜV | 4000 Vrms dielectric | Class B+F | quick connects | 2.4mm or 3.0mm contact gap | |
AZ2703  | 30A | SPST/DPST | UL/CUR/TÜV | 4000 Vrms dielectric | Class B+F | PCB mount | 2.4mm or 3.0mm contact gap | |
AZ2704  | 30A | SPST/DPST | UL/CUR/TÜV | 4000 Vrms dielectric | Class B+F | PCB mount | 2.4mm or 3.0mm contact gap | |
AZ2705  | 30A | SPST/DPST | UL/CUR/TÜV | 4000 Vrms dielectric | Class B+F | Panel mount w/screw connect | 2.4mm or 3.0mm contact gap | |
| AZ2732 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ742, AZ743, AZ7335. |
AZ2800  | 40A | DPST/DPDT | UL/CUR/VDE | 4000 Vrms dielectric | Class F | panel mount w/quick connects | - | |
AZ2850  | 40A | DPST/DPDT | UL/CUR/VDE | 4000 Vrms dielectric | Class F | PCB mount | - | |
AZ6951  | 5A | SPST | UL/CUR | 3000 Vrms dielectric | - | PCB mount | - | |
| AZ6961 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ6962. |
AZ6962  | 10A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class B | PCB mount | 10 mm isolation | |
AZ6975  | 10A | SPST/SPDT | UL/CUR | 5000 Vrms dielectric | Class F | PCB mount | - | |
AZ6991  | 6A | DPST/DPDT | UL/CUR | 4000 Vrms dielectric | - | PCB mount | 8 mm isolation | |
AZ7335  | 8A | DPST/DPDT | UL/CUR/TUV | 5000 Vrms dielectric | Class F | PCB mount | - | |

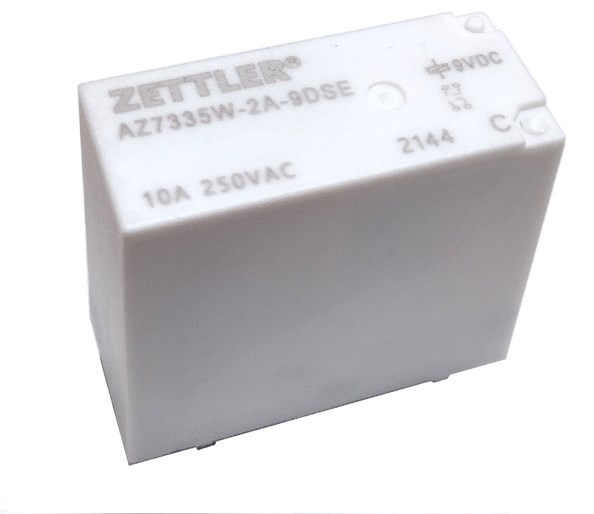

AZ7335W  | 10A | DPST/DPDT | UL/CUR | 5000 Vrms dielectric | Class F | PCB mount/socket mount | 1.5mm gap | |
AZ7555  | 20A | SPST/SPDT | UL/CUR | 5000 Vrms dielectric | Class F | PCB solder/socket mount | - | |
AZ7621  | 16A | SPST/SPDT | UL/CUR/VDE | 5000 Vrms dielectric | Class B | PCB mount | High inrush | |
AZ7621H  | 20A | SPST/SPDT | UL/CUR | 5000 Vrms dielectric | Class F | PCB mount | Low height | |
AZ7621P  | 16A | SPST/SPDT | UL/CUR | 5000 Vrms dielectric | - | PCB mount | - | |
| AZ7671 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ7709. |
AZ7695  | 25A | SPST | UL/CUR | 5000 Vrms dielectric | Class F | PCB mount w/quick connects | - | |
AZ7705  | 5A | SPST | UL/CUR | 4000 Vrms dielectric | Class F | PCB mount | - | |
AZ7707  | 10A | SPST | UL/CUR | 4000 Vrms dielectric | Class B+F | PCB mount | - | |
| AZ7709 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ7707. |
AZ8222  | 2A | DPDT | UL/FCC Part 68 | 1500 Vrms dielectric | - | PCB mount | - | |
| AZ8461 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ8462. |
AZ8462  | 2A | DPDT | UL/CUR | 1500 Vrms dielectric | - | PCB mount | Latching | |
| AZ8463 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ8462. |
AZ8512  | 2A | DPDT | UL/CUR | 1000 Vrms dielectric | - | PCB mount | Latching | |
AZ8521  | 2A | DPDT | UL/CUR | 1800 Vrms dielectric | - | PCB mount | Latching | |
AZ9201  | 5A | SPST | UL/CUR | 2000 Vrms dielectric | Class B | PCB mount | - | |
AZ9321  | 20A | SPST/SPDT | UL/CUR | 3000 Vrms dielectric | Class F | PCB mount | - | |
AZ9371  | 10A | SPST | UL/CUR/VDE | 4000 Vrms dielectric | Class B+F | PCB mount | - | |
AZ9375  | 10A | SPST | UL/CUR | 4000 Vrms dielectric | - | PCB mount | - | |
AZ9402  | 10A | SPST/SPDT | - | 4000 Vrms dielectric | - | PCB mount | - | |
AZ9403  | 10A | SPST/SPDT | UL/CUR | 4000 Vrms dielectric | Class B+F | PCB mount | - | |
AZ9405  | 10A | SPST/SPDT | UL/CUR | 4000 Vrms dielectric | Class F | PCB mount | - | |
AZ9421A  | 20A | SPDT | - | 2500 Vrms dielectric | Class F | PCB mount | automotive | |
AZ9422  | 20A | SPST/SPDT | UL/CUR/TUV | 2000 Vrms dielectric | Class F | PCB mount | - | |
AZ9431  | 15A | SPST/SPDT | UL/CUR | 1500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ943T  | 20A | SPST/SPDT | UL/CUR | 2500 Vrms dielectric | Class B+F | PCB mount | - | |
AZ9471  | 25A | SPDT | - | 500 Vrms dielectric | - | PCB mount | automotive | |
AZ9481  | 16A | SPST/SPDT | UL/CUR/TÜV | 2500 Vrms dielectric | Class F | PCB mount | - | |
AZ9481F  | 16A | SPST | UL/CUR/TÜV | 2500 Vrms dielectric | Class F | PCB mount w/quick connects | - | |
AZ9541Y  | 1-5A | SPDT | UL/CUR | 1100 Vrms dielectric | Class F | PCB mount | - | |
AZ9571  | 1A | SPDT | UL/CUR | 1000 Vrms dielectric | - | PCB mount | - | |
AZ9701/AZ9711  | 45A | SPST/SPDT | - | 500 VDC dielectric | - | PCB mount | automotive | |
AZ9701E/AZ9711E  | 45A | SPST/SPDT | - | 500 VDC dielectric | - | PCB mount | automotive/European Footprints | |
| AZ9721 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ9731, . |
| AZ9722 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relays are AZ9731, . |
AZ9731  | 40A | SPST/SPDT | - | 500 Vrms dielectric | - | quick connect | automotive | |
AZ9731F  | 30A | SPST | - | 500 Vrms dielectric | - | quick connect | automotive | |
| AZ9731T | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9731T5. |
AZ9731T5  | 50A | SPST/SPDT | - | 500 Vrms dielectric | - | quick connect | automotive | |
AZ9733  | 40A | SPST/SPDT | - | 500 Vrms dielectric | - | Quick Connects/PCB Terminals/ Socket | automotive | |
AZ9741  | 40A | SPST/SPDT | - | 500 Vrms dielectric | - | PCB mount | automotive | |
AZ9801  | 70A | SPST | - | 1500 Vrms dielectric | - | quick connect | automotive | |
AZ9831  | 70A | SPST | - | 500 Vrms dielectric | - | PCB mount | automotive | |
AZ9841  | 40A | SPST/SPDT | - | 500 Vrms dielectric | Class B | PCB solder/socket mount | automotive | |
AZ9871  | 30A | SPST/SPDT/DPST/DPDT | - | 500 Vrms dielectric | - | PCB mount | automotive | |
AZ9882  | 40A | SPST/SPDT | - | 500 VDC dielectric | - | Plug-in/Solder Terminal | automotive | |
| AZ9891 | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9891J. |
| AZ9891H | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is AZ9891J. |
AZ9891J  | 30A | SPDT/DPDT | - | 500 Vrms dielectric | - | PCB mount | automotive | |
AZDC007  | 50A | SPST | CQC | 4500 Vrms dielectric | Class F | PCB mount | 1.8mm contact gap | |
AZDC105  | 150A | SPST | UL/CUR/TUV | 4000 Vrms dielectric | Class F | PCB mount | 3mm contact gap Available | |
AZDC110  | 16A | SPST | UL/CUR/TUV | 5000 Vrms dielectric | Class F | PCB mount | 3mm contact gap Available | |
AZDC6  | 12.5A | DPST | CSA | 4000 Vrms dielectric | Class F | PCB mount | According to 2017 NEC 690.12 | |
AZEV116  | 16A | SPST | UL/CUR/TUV | 4000 Vrms dielectric | Class F | PCB mount | >2.25mm contact gap available | |
AZEV132  | 32A | SPST | UL/CUR/TUV | 4000 Vrms dielectric | Class F | PCB mount | >2.25mm contact gap available | |
AZEV140  | 40A | SPST | UL/CUR/TUV | 4000 Vrms dielectric | Class F | PCB mount | >2.25mm contact gap | |
AZEV200  | 40A | DPST | UL/CUR/TUV/CQC | 5000 Vrms dielectric | Class F | PCB mount | >3.42mm contact gap | |
AZKUP  | 13A | 1-3PDT | UL/CUR | 2200 Vrms dielectric | Class F | solder/socket mount | - | |
| AZPRD | 50A | 1 Form A,B,C,X,Y, 2 Form A,B,C | UL/CUR | 2200 Vrms dielectric | Class F | panel mount | - | |
AZSR1160  | 160A | SPST | UL/CUR/TUV | 4000 Vrms dielectric | Class F | PCB mount | 3.6mm contact gap available | |
AZSR1180  | 180A | SPST | UL/CUR/TUV | 4000 Vrms dielectric | Class F | PCB mount | 3.6mm contact gap available | |
AZSR1200  | 200A | SPST | UL/CUR/TUV | 4000 Vrms dielectric | Class F | PCB mount | 3.6mm contact gap | |
AZSR126  | 26A | SPST | UL/CUR/VDE Pending | 4500 Vrms dielectric | Class F | PCB mount | 1.5mm or 1.8mm contact gap | |
AZSR131  | 35A | SPST | UL/CUR/TUV | 4500 Vrms dielectric | Class F | PCB mount | 1.8mm or 2.3mm contact gap | |
AZSR143  | 50A | SPST | UL/CUR/TUV | 4500 Vrms dielectric | Class F | PCB mount | 1.8mm contact gap | |
AZSR165  | 80A | SPST | UL/CUR/TUV | 4000 Vrms dielectric | Class F | PCB mount | 3.0mm contact gap Available | |
AZSR170  | 70A | SPST | UL/CUR/TUV/CQC | 5000 Vrms dielectric | Class F | PCB mount | 3.0/3.4mm contact gap | |
AZSR180  | 80A | SPST | UL/CUR/VDE | 5000 Vrms dielectric | Class F | PCB mount | 2.05mm contact gap | |
AZSR190  | 100A | SPST | UL/CUR/TUV | 5000 Vrms dielectric | Class F | PCB mount | 3.6mm contact gap Available | |
AZSR235  | 35A | SPST/DPST | UL/CUR/VDE | 5000 Vrms dielectric | Class F | PCB mount | 2.05mm contact gap | |
| AZSR250 | 55A | SPST/DPST | UL/CUR/VDE | 5000 Vrms dielectric | Class F | PCB mount | 1.85mm contact gap | |
XMC0  | 25-90A | SPST/SPDT w/shunt DPST, 3PST, 4PST | UL/CUR | 2500 Vrms dielectric | Class F | panel mount w/quick connects | - | |
| XMC0 | 25-90A | 1PST w/Shunt | UL/CUR | 2500 Vrms dielectric | Class F | panel mount w/quick connects | - | |
| XMC0 | 25-90A | 2PST | UL/CUR | 2500 Vrms dielectric | Class F | panel mount w/quick connects | - | |
| XMC0 | 25-90A | 3PST | UL/CUR | 2500 Vrms dielectric | Class F | panel mount w/quick connects | - | |
| XMCK | This series is discontinued. American Zettler still offers a PDF Spec Sheet. Click here to download. Replacement relay is XMC0. |
