AZ6991 - SENSITIVE SUBMINIATURE RELAY
Features:
- Extremely small footprint (only 0.22 sq in.)
- Thin vertical profile only 0.196 in. wide
- 6 Amp switching capability
- Isolation spacing greater than 8 mm
- Dielectric strength of 4000 Vrms
- High sensitivity
- UL, CUR approvals
Engineering Resources
| Contact ratings | Coil Voltage | Contact forms | Coil Power at pickup voltage | ||
|---|---|---|---|---|---|
| 6 A at 277 VAC
6 A at 30 VDC R300 Pilot Duty |

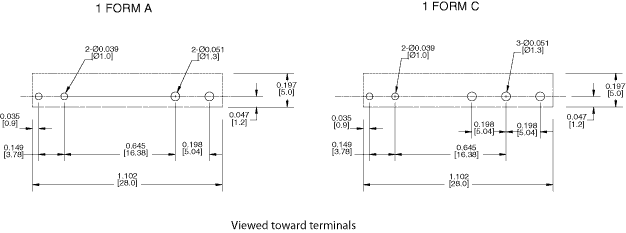

5 thru 60 VDC | 1 Form A and C | 95 mW | ||
| Typical Life - Electrical | Typical Life - Mechanical | Dielectric Strength(at sea level for 1 min.) | |||
| 30,000 operations at 6A, 30 VDC/ 250 VAC Resistive | 10,000,000 operations | Contact to Coil: 4000 Vrms
Between Open Contacts: 1000 Vrms |
|||
| Terminals PC | Terminals Solder / Plug-In | Terminals Bracket Mount | Approvals | Minimum Load | Size in Inches (L x W x H) |
| THT | No | No | UL/CUR | 5 V, 0.01 A | 1.102 x 0.197 x 0.591 |
