AZ7621P - 16 AMP MINIATURE POWER RELAY
Features:
- Latching Relay
- Dielectric strength 5000 Vrms
- Epoxy sealed version available
- PC Board mounting
- UL, CUR approvals
Engineering Resources
| Contact ratings | Coil Voltage | Contact forms | Coil Power at pickup voltage | ||
|---|---|---|---|---|---|
| 16 A at 250 VAC Resistive 50,000 Cycles | 3 thru 24 VDC | 1 Form A, C | Single: 196 mW
Dual: 318 mW |
||
| Typical Life - Electrical | Typical Life - Mechanical | Dielectric Strength(at sea level for 1 min.) | |||
| 100,000 operations at 16 A 250 VAC Resistive | 1,000,000 operations | Contact to Coil: 5000 Vrms
Between Open Contacts: 1000 Vrms |
|||

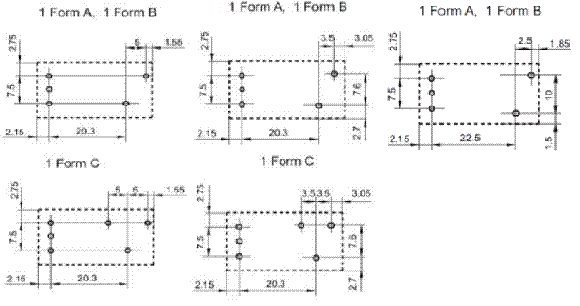

| Terminals PC | Terminals Solder / Plug-In | Terminals Bracket Mount | Approvals | Minimum Load | Size in Inches (L x W x H) |
| Yes | No | No | UL/CUR | 5 V, 0.1 A | 1.14 x 0.50 x 0.62 |
