AZEV200 - 40 AMP 2-POLE POWER RELAY
Features:
- Dielectric strength 5000 Vrms, 10kV surge
- Contact gap greater than 3.42mm
- Class F insulation system
- Meets IEC 62752, IEC 62955, and IEC 62052-11
- UL, CUR, TUV, and CQC approvals
- Auxiliary NC contact for weld monitoring
Engineering Resources
| Contact ratings | Coil Voltage | Contact forms | Coil Power at pickup voltage | ||
|---|---|---|---|---|---|
| 40 A at 480 VAC, Res. 6K, @85C (NO.)
10 mA at 12 VDC, Res. 50K, @85C (NC.) 32 A at 400 VAC, Res. 50K, @95C (NO.) |
6,9,12,24,48 VDC | 2 Form A+1 Form B
2 Form A |
1.95 W | ||
| Typical Life - Electrical | Typical Life - Mechanical | Dielectric Strength(at sea level for 1 min.) | |||
| 50k cycles @35A 400VAC Res
6k cycles @40A 480VAC Res |
100,000 operations | Contact to Coil: 5000 Vrms
Between Open Contacts: 2000 Vrms |
|||

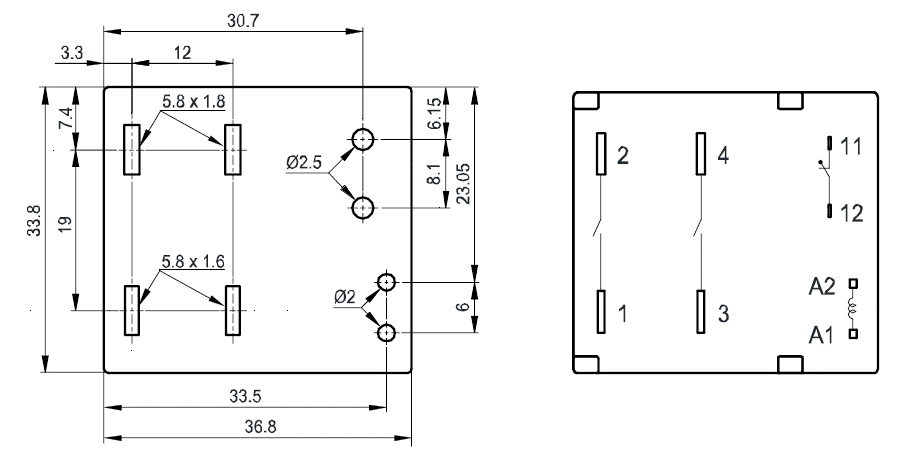

| Terminals PC | Terminals Solder / Plug-In | Terminals Bracket Mount | Approvals | Minimum Load | Size in Inches (L x W x H) |
| Yes | No | No | UL/TUV/CQC | 5 V, 0.1 A | See data sheet |
