AZ8 - MINIATURE PC BOARD RELAY
Features:
- High sensitivity (110 mW)
- Class F (155 C) insulation available
- VDE versions available
- Withstands 6 kV IEEE Lightning Surge (special order)
- Hermetically sealed version available
Engineering Resources
| Contact ratings | Coil Voltage | Contact forms | Coil Power at pickup voltage | ||
|---|---|---|---|---|---|
| Light Duty: 2 A at 28 VDC / 300 VAC
Medium Duty: 6 A at 28 VDC / 300 VAC |
5 thru 48 VDC | 1 Form A and C | Standard Coils: 250 mW
Sensitive Coils: 140 mW (110 mW available) |
||
| Typical Life - Electrical | Typical Life - Mechanical | Dielectric Strength(at sea level for 1 min.) | |||
| Light Duty: 300,000 operations at 3 A / 120 VAC Resistive
Medium Duty: 180,000 operations at 6 A / 120 VAC Resistive |
100,000,000 operations | Contact to Coil: 2500 Vrms
Between Open Contacts: 750 Vrms |

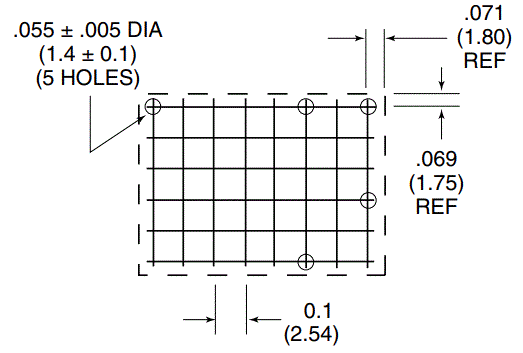

|||
| Terminals PC | Terminals Solder / Plug-In | Terminals Bracket Mount | Approvals | Minimum Load | Size in Inches (L x W x H) |
| THT | No | No | UL/CUR/VDE | LD: 5 V, 0.01 A
MD: 5 V, 0.01 A HD: 5 V, 0.1 A |
0.840 x 0.637 x 0.565 |
