AZ2700 - 30 AMP POWER RELAY

Features:

  • Low Cost
  • Class B insulation system standard, Class F available
  • Quick Connect
  • 4 kV dielectric
  • UL, CUR, TÜV approvals
  • AC and DC coils available
  • Standard (2.4 mm) and wide contact gap (3.0 mm)available

Engineering Resources

Download datasheetDownload AutoCAD fileDownload DXF fileUL yellow card info Request more info
Product Picture: AZ2700
Contact ratings Coil Voltage Contact forms Coil Power at pickup voltage
30 A at 277 VAC res. 30K
1.5 HP at 120 VAC
3 HP at 240 VAC
TV-10 at 120 VAC 		3 thru 200 VDC
6 thru 220 VAC 		1 Form X
2 Form X 		1.08 W (DC)
1.7 VA (AC)
Typical Life - Electrical Typical Life - Mechanical Dielectric Strength(at sea level for 1 min.)
100,000 operations at 30 A / 120 VAC Resistive 1,000,000 operations Contact to Coil: 4000 Vrms
Between Open Contacts: 2000 Vrms
Terminals PC Terminals Solder / Plug-In Terminals Bracket Mount Approvals Minimum Load Size in Inches (L x W x H)
No Quick-Connects Yes UL/CUR/TUV 5 V, 0.1 A 2.677 x 1.295 x 1.858

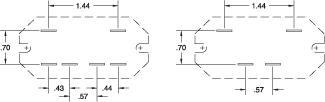

Footprint: AZ2700
