AZ955 - SUBMINIATURE PC BOARD RELAY
Features:
- Meets FCC Part 68.302 and 68.304
- Welded crossbar construction
- Subminiature size for high density packaging
- DIL pitch terminals
- Recommended replacement: AZ9571
Engineering Resources
| Contact ratings | Coil Voltage | Contact forms | Coil Power at pickup voltage | ||
|---|---|---|---|---|---|
| 1 A at 30 VDC
0.5 A at 120 VAC |
1.5 thru 24 VDC | 1 Form C | 84 mW | ||
| Typical Life - Electrical | Typical Life - Mechanical | Dielectric Strength(at sea level for 1 min.) | |||
| 100,000 operations at 0.5 A / 120 VAC Resistive | 10,000,000 operations | Contact to Coil: 1250 Vrms
Between Open Contacts: 500 Vrms |

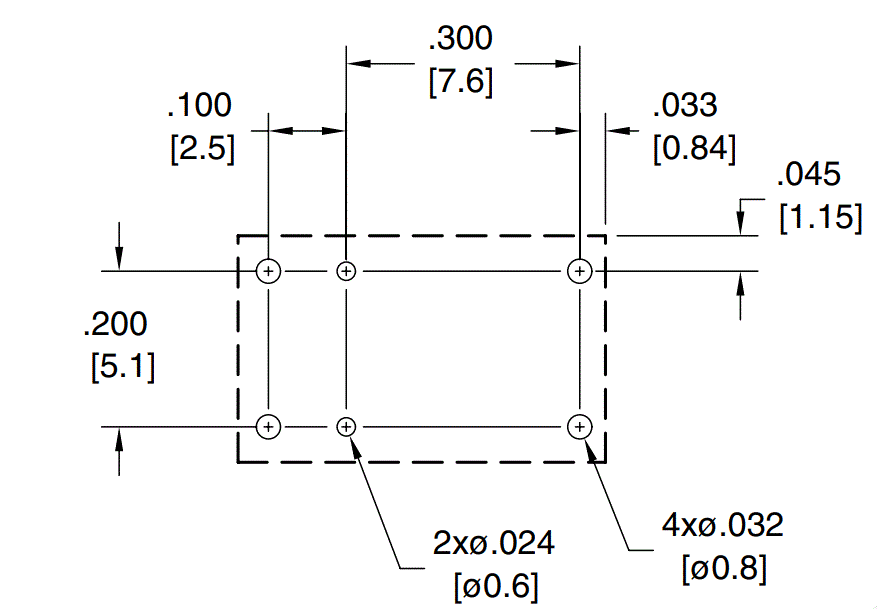

|||
| Terminals PC | Terminals Solder / Plug-In | Terminals Bracket Mount | Approvals | Minimum Load | Size in Inches (L x W x H) |
| THT | No | No | UL/CSA | 5 V, 0.01 A | 0.472 x 0.291 x 0.385 |
