AZ954 - SUBMINIATURE POWER RELAY
Features:
- Subminiature size for high density packaging
- High sensitivity (114 mW)
- Coils to 24 VDC
- Extremely low cost
- Class B and F insulation available
- Recommended replacement: AZ951
Engineering Resources
| Contact ratings | Coil Voltage | Contact forms | Coil Power at pickup voltage | ||
|---|---|---|---|---|---|
| 2 A at 24 VDC / 250 VAC | 3 thru 24 VDC | 1 Form C | 114 mW | ||
| Typical Life - Electrical | Typical Life - Mechanical | Dielectric Strength(at sea level for 1 min.) | |||
| 100,000 operations at 2 A / 120 VAC Resistive | 10,000,000 operations | Contact to Coil: 1250 Vrms
Between Open Contacts: 750 Vrms |

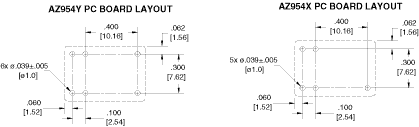

|||
| Terminals PC | Terminals Solder / Plug-In | Terminals Bracket Mount | Approvals | Minimum Load | Size in Inches (L x W x H) |
| THT | No | No | UL/CUR | 5 V, 0.01 A | 0.620 x 0.423 x 0.465 |
