AZ880 - 10 A SPST / 8 A DPST POLARIZED SUBMINIATURE POWER RELAY
Features:
- *DISCONTINUED*
- Dielectric strength 4000 Vrms
- Epoxy sealed version available
- 10 Amp switching
- UL, CUR approvals
- Note - Part has been Discontinued - please see replacement relay series AZ888
- Recommended replacement: AZ888
Engineering Resources
| Contact ratings | Coil Voltage | Contact forms | Coil Power at pickup voltage | ||
|---|---|---|---|---|---|
| 1 Form A: 10 A at 250 VAC, 10 A at 30 VDC
2 Form A and 1 Form A / 1 Form B: 8 A at 250 VAC / 30 VDC 1/3 HP at 250 VAC 1/4 HP at 125 VAC |
3 thru 24 VDC | 1 Form A and 1 Form A / 1 Form B
2 Form A |
137 mW (2 A single side stable, dual coil latching)
98 mW (1 coil latching or 1A or 1AB single side stable) |
||
| Typical Life - Electrical | Typical Life - Mechanical | Dielectric Strength(at sea level for 1 min.) | |||
| 100,000 operations at 10 A 250 VAC res. (1 Form A) | 10,000,000 operations | Contact to Coil: 4000 Vrms
Between Open Contacts: 1000 Vrms Contact Set to Contact Set: 2000 Vrms |
|||

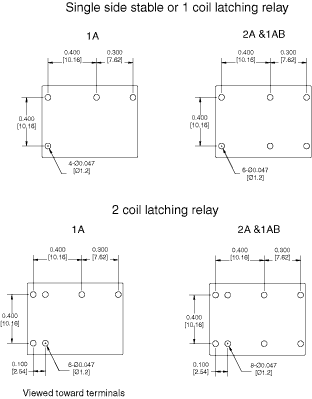

| Terminals PC | Terminals Solder / Plug-In | Terminals Bracket Mount | Approvals | Minimum Load | Size in Inches (L x W x H) |
| THT | No | No | UL/CUR | 5 V, 0.01 A
10 mV, 10 uA (gold plated) |
0.787 x 0.591 x 0.402 |
